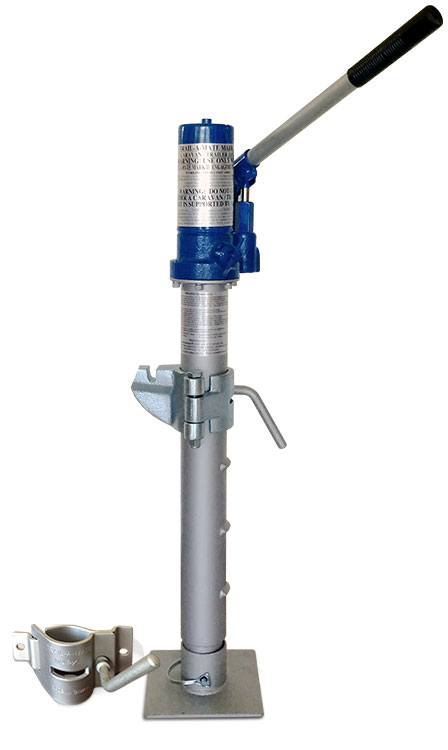

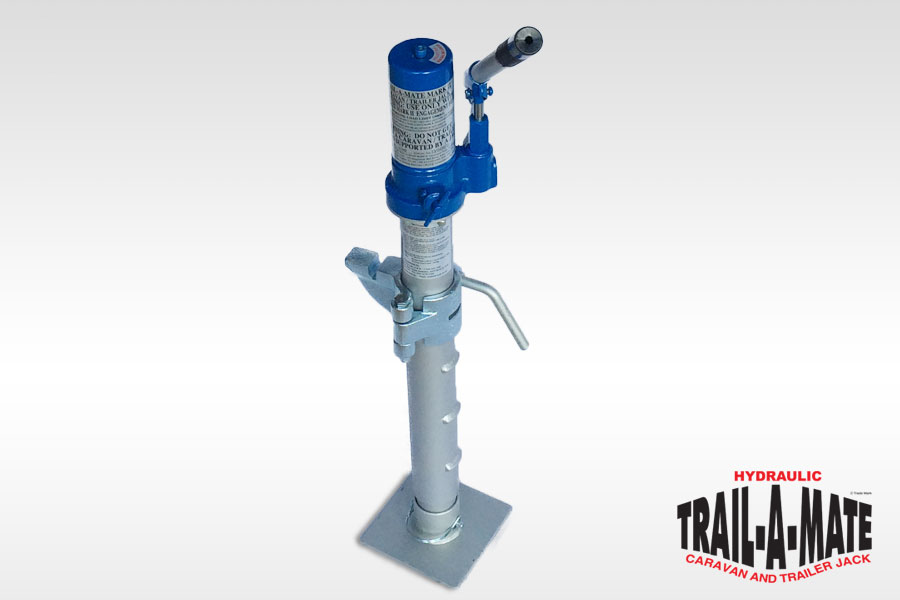

Trail-A-Mate MkII

A hydraulic caravan jack designed to lift larger, heavier vans.

Trail-A-Mate MkII is a hydraulic caravan jack designed to lift larger and heavier caravans than our original Trail-A-Mate Jockey Wheel/Jack. The key features of the MkII are as follows:

  • Capability - WLL 1,500kg / ATM 3,500kg

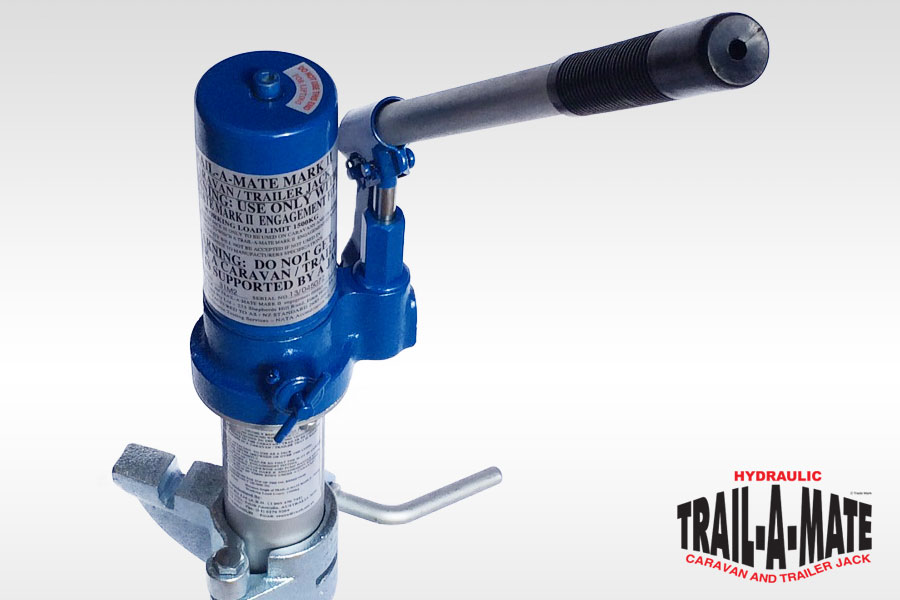

  • Ease of Use - Being hydraulic it takes very little effort to operate
  • Safety - Fully complies with the Australian mandatory safety standards (2693:2007)

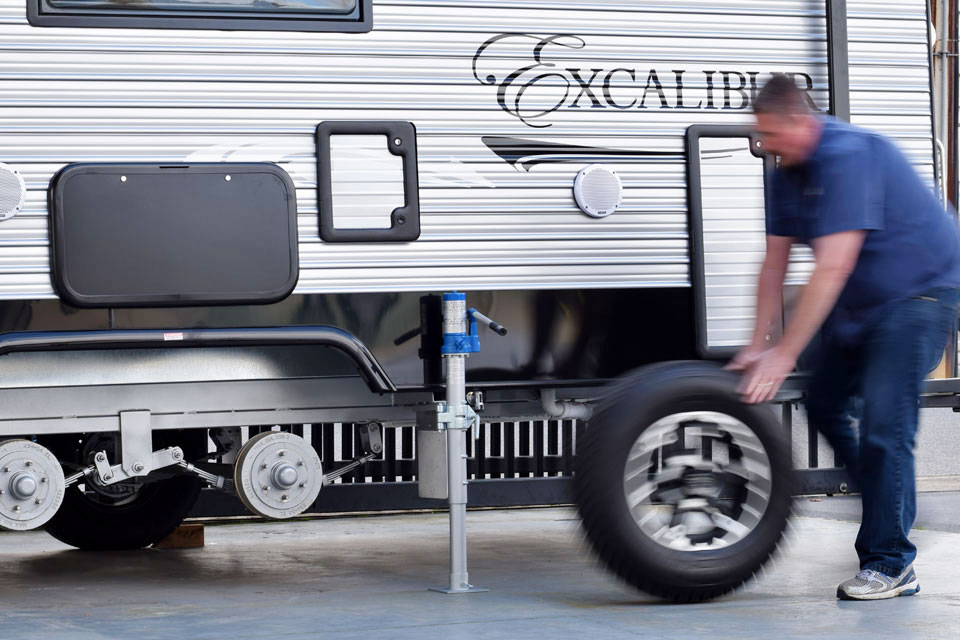

It has many applications and uses as you will see below such as Caravanning, Horse Floats, Trailers, Food Vans (the list goes on). It is even used by the Australia Defence Force - four Trail-A-Mates are used on each corner of a vehicle that carries a telescope so it can be safely leveled on un-even ground. It is an extremely versatile product.

In addition to its versatility we have spent many years perfecting and refining the Trail-A-Mate jacks to be as safe and easy to use as possible. Leading up to 2007 we were working with the Australian Government to assist them in introducing a Mandatory Safety Standard for Caravan and Trailer Jacks.

OPERATING LIMITS

Minimum Height: 145mm

Maximum Height: 780mm

Lifting Range: 380mm

Working Load Limit: 1500kg

MANUAL & PARTS

STANDARDS & SAFETY

Below are links to the Trail-A-Mate Owners Manual and the Trail-A-Mate Parts List.

Specifications

Hydraulic YES
Working Load Limit (WLL) 1,500kg
Agregated Mass(ATM) 3,500kg

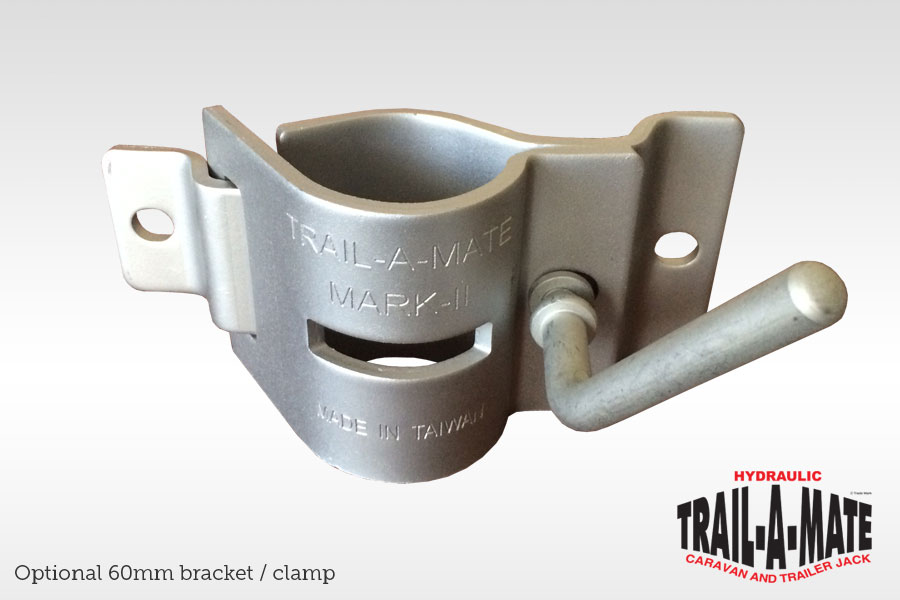

Jockey Clamp Size 60mm Clamp (Optional)

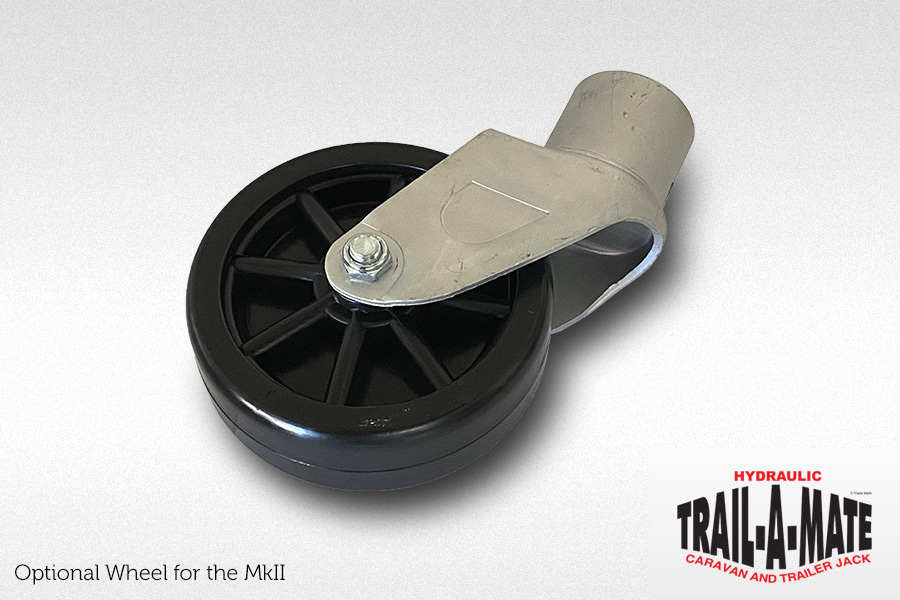

Wheel Attachment OPTIONAL
Base Plate INCLUDED

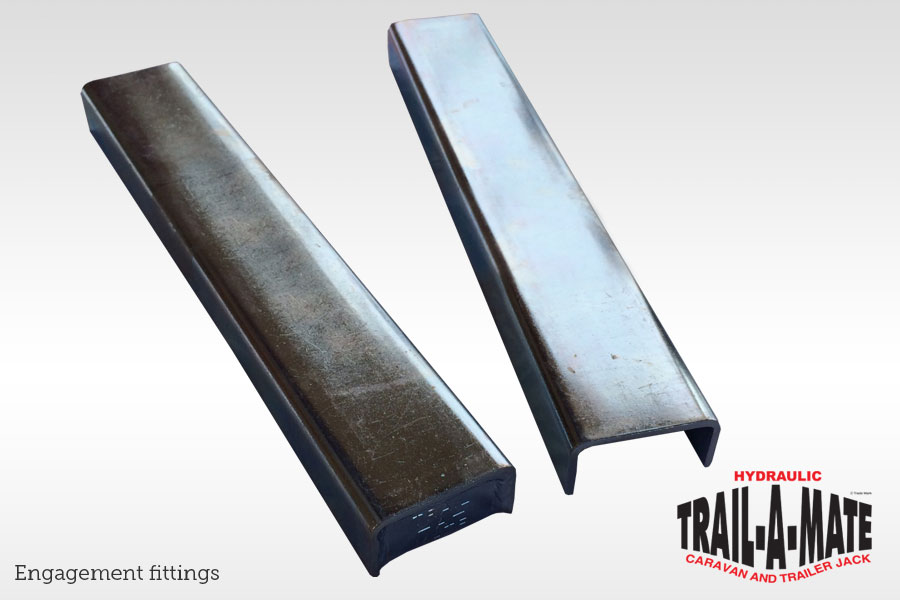

Engagement Fittings INCLUDED
Wheel Brace INCLUDED
Promo Hat INCLUDED

FAQS

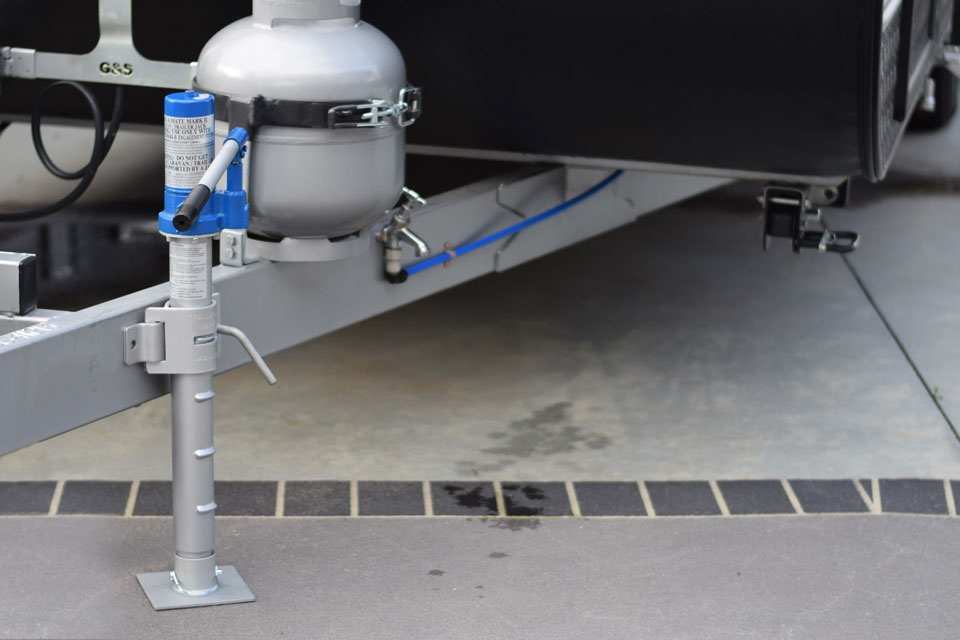

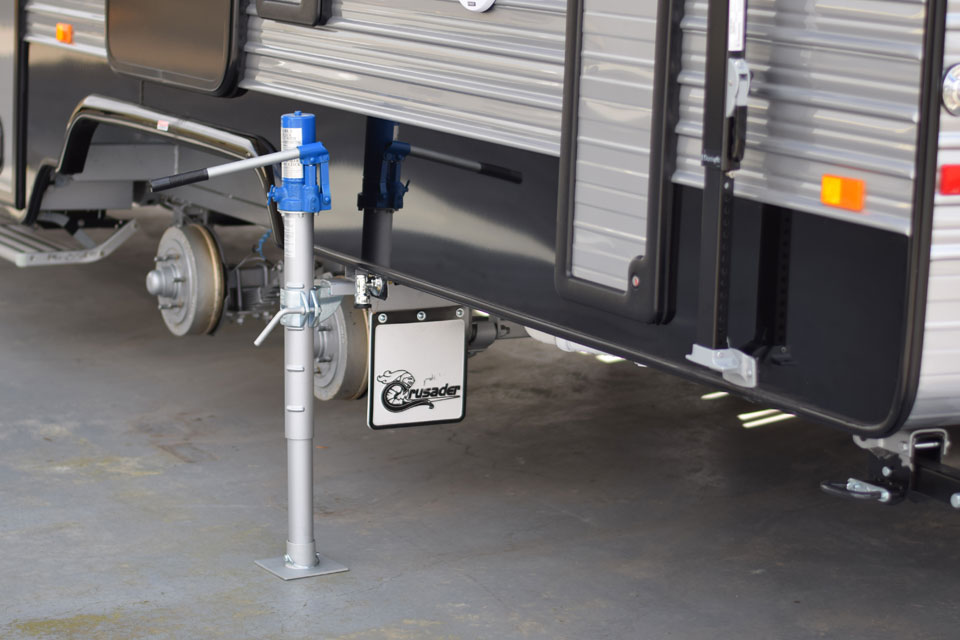

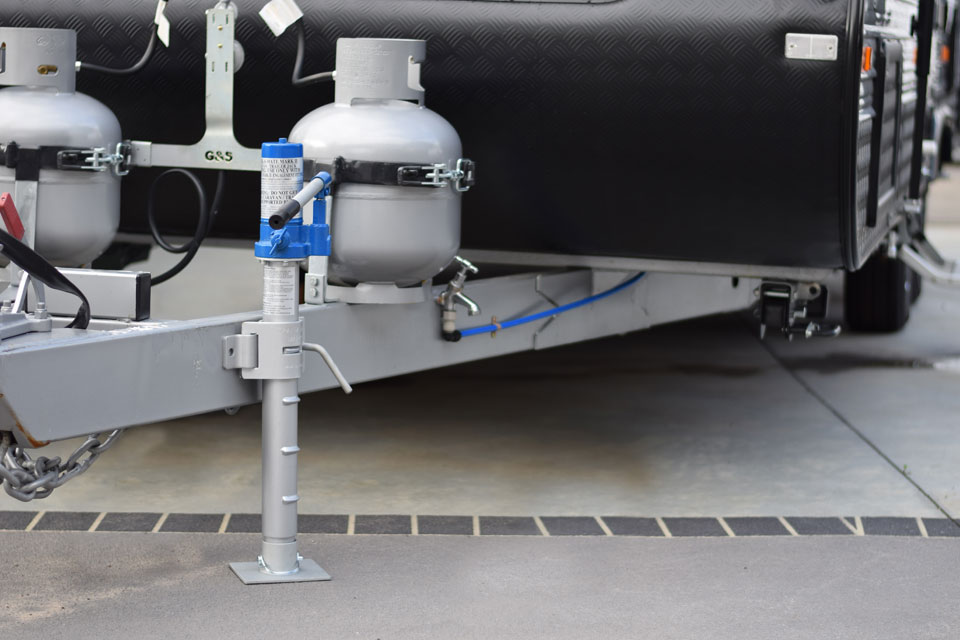

Yes, you can fit a Trail-A-Mate MkII to your caravan and it can be used as a jockey stand. We have developed our own 60mm clamp to facilitate this, however this jack does not come with a wheel, only a flat base plate.

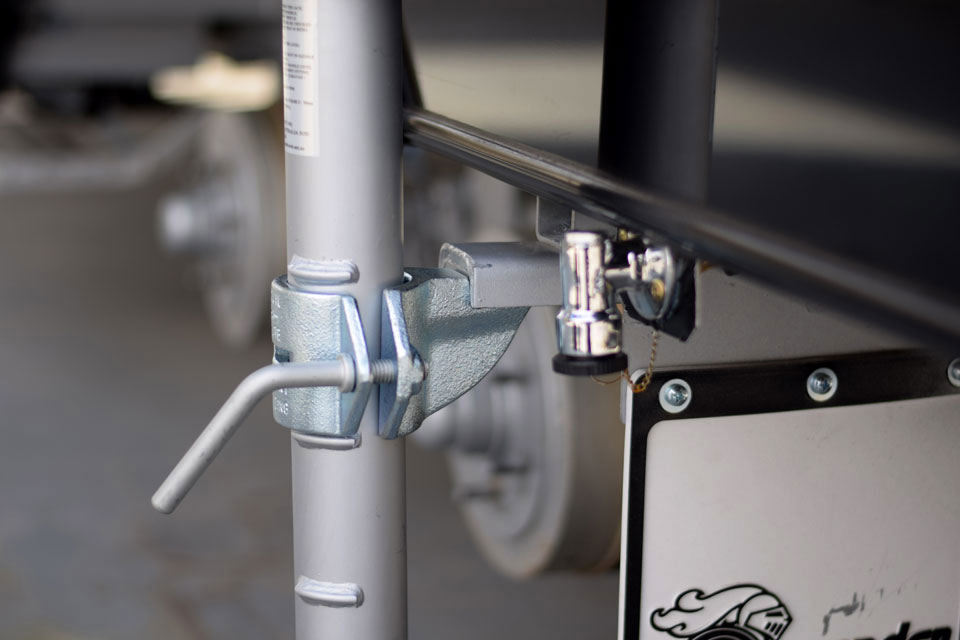

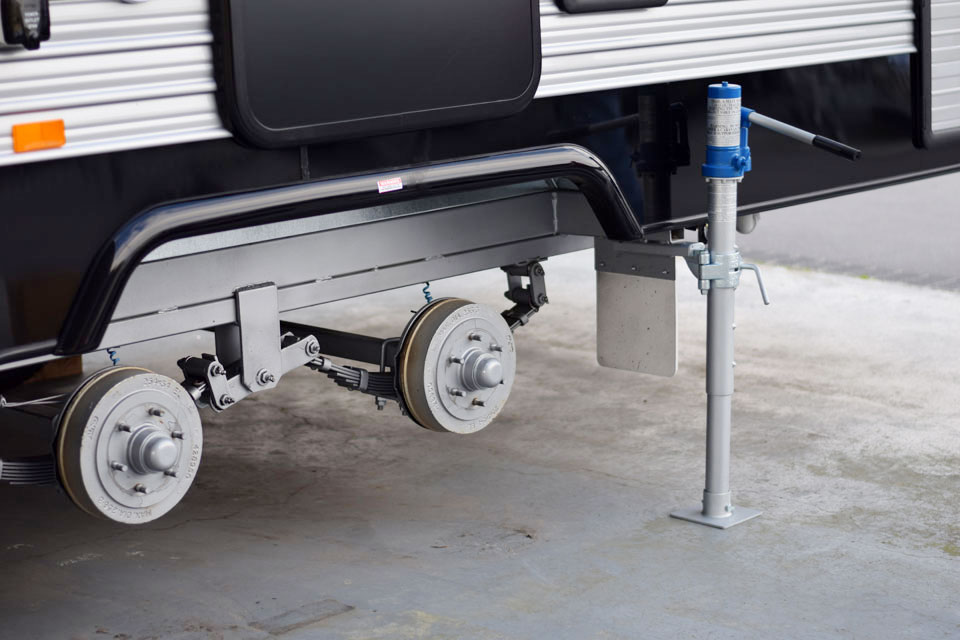

Yes, almost all caravans built over recent years have a cross-member at the rear of the axles strong enough to accommodate the brackets, which must be welded on. However, over the last couple of years, the majority of caravan manufacturers have fitted the brackets which create the jacking points for Trail-A-Mate as standard equipment.

No, the Trail-A-Mate MkII is designed to be used as both a jockey stand and a jack, minimizing the need to carry unnecessary equipment on holidays with you.

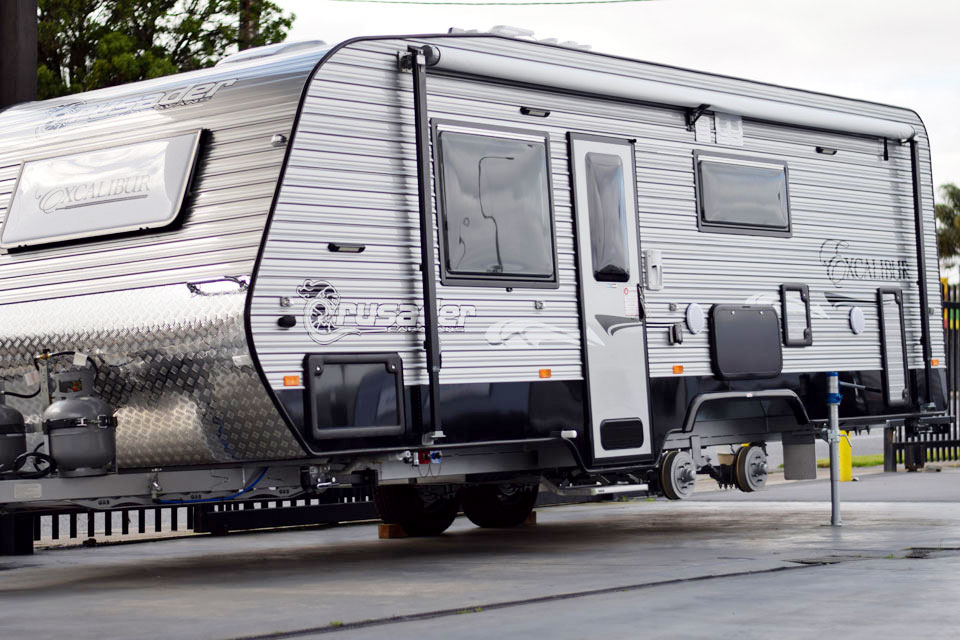

Yes, Trail-A-Mate has a Working Load Limit of 1,500kg. When you are jacking the caravan using a Trail-A-Mate, you are not lifting the entire weight of the caravan, you are lifting approximately 1/3 or less of the vehicle weight at any of the jacking points.

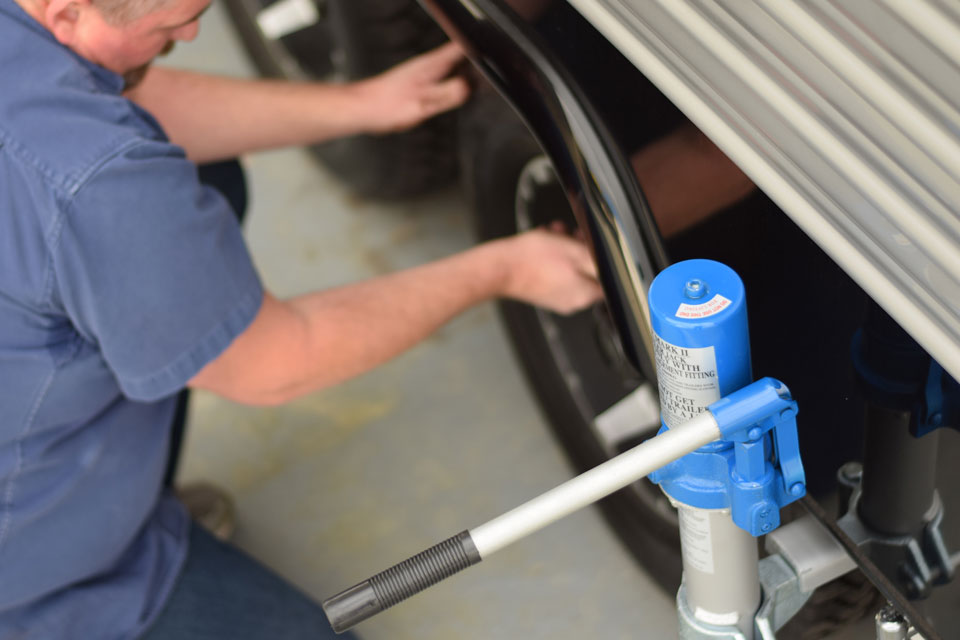

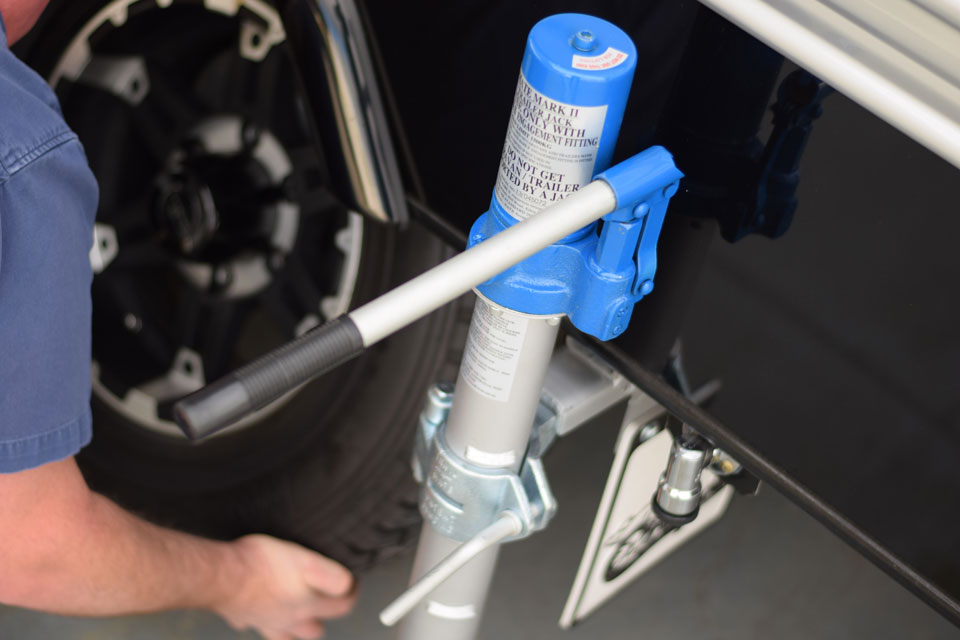

No, Trail-A-Mate is designed so that it is operated from a standing position, using a minimum amount of effort, preventing you from having to climb underneath your van, making it not only easier, but a much safer option.

The Trail-A-Mate has the capacity with the base plate fitted, to lift from as low as 6 inches (150mm) above the ground to a height of 20 inches (500mm) in one straight lift.

Trail-A-Mate has been designed so that even a person with a very limited knowledge of hydraulics could repair the unit by following some very basic instructions,
